Steel Grating

Steel grating by the grid load on certain flat steel bar and spacing Affairs with the high pressure resistance welding machine welded together on the original plate. With the character of high-intensity, light structure and good ventilation. It be widely used in corridors, bridge, ditch cover, covers, ladders, and so on.

Raw Material:

Grid load flat steel bar: High-quality low carbon steel, galvanized steel, stainless steel, alloy steel.

Horizontal pole: Q235A or 304 stainless round steel, twisted square steel, square steel and hexagonal steel.

Classification: Welded steel grating, standard pressure lock grating, dense grating, ditch cover and ladders

Features: Strong steel structure made it have a high carrying capacity; With good corrosion resistance through surface by hot-dip galvanized; light structure easy to lifting; flat serrated have the character of safety and anti-slip; ventilation, lighting, heat, explosion-proof.

Finish treatment: Hot dipped galvanized, cold dipped galvanized, spray painting, dip anti-rust oil, can prevent oxidation.

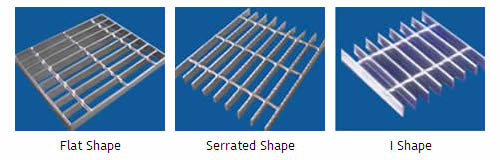

Surface type: Flat type, serrated type, I shape type (According to requirement made different protective treatment).

Flat type: The most widely steel grating.

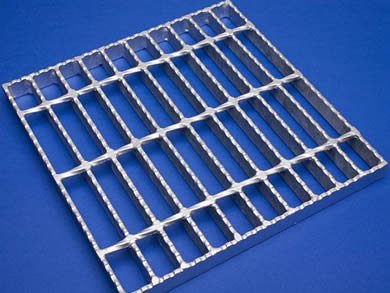

Serrated type: With better non-slip.

I type: On the surface, path and items not in the same flat. With the character of light weight, economic and practical.

Application of steel grating:

  • All kind of plant, such as power plants, chemical plants, steel plants, oil plants, paper-making plants, and so on. Used as platforms.
  • All kind of shipping, used as platform of ramp, channels, pumping stations and engine room.
  • All kinds bridge, such as side road of railway bridge, suspension bridge, trestle bridge. Used as panel shop.
  • Used as drain covers and road fence at municipal engineering and road.
  • Other uses, such as oil platform, wharf road, washing platform, tower platform and building fence, and so on.

DSpecifications kg/m2 DSpecifications kg/m2
DDG205/30/ 100
50		 33.1
36.2		 DDG205/40/ 100
50		 26.6
29.8
DDG255/30/ 100
50		 40.5
43.7		 DDG255/40/ 100
50		 32.4
35.6
DDG325/30/ 100
50		 51.0
54.2		 DDG325/40/ 100
50		 40.5
43.7
DDG355/30/ 100
50		 55.6
58.8		 DDG355/40/ 100
50		 43.9
47.2
DDG405/30/ 100
50		 62.9
66.1		 DDG405/40/ 100
50		 49.8
53.0
DDG455/30/ 100
50		 70.4
73.6		 DDG455/40/ 100
50		 55.6
58.8
DDG505/30/ 100
50		 78.3
81.1		 DDG505/40/ 100
50		 61.4
64.6
DDG555/30/ 100
50		 85.1
88.2		 DDG555/40/ 100
50		 66.9
70.1
DDG605/30/ 100
50		 93.0
96.0		 DDG605/40/ 100
50		 72.7
75.6
DDG655/30/ 100
50		 100.4
103.5		 DDG655/40/ 100
50		 78.8
82.1

Specifications kg/m2 Specifications kg/m2
DG203/30/ 100
50		 21.1
24.3		 DDG203/40/ 100
50		 17.2
20.4
DG253/30/ 100
50		 25.6
28.8		 DDG253/40/ 100
50		 20.6
23.9
DG323/30/ 100
50		 31.8
35.1		 DDG323/40/ 100
50		 25.5
28.8
DG403/30/ 100
50		 39.1
42.2		 DDG403/40/ 100
50		 31.1
34.4

If you need to consult the price, please contact the business department by e-mail:
Anyida will service for you !
Tel: +86-22-22-23617450
E-mail: info@wiremeshgroup.com
Phone (WhatApp): +86 18630910128

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
