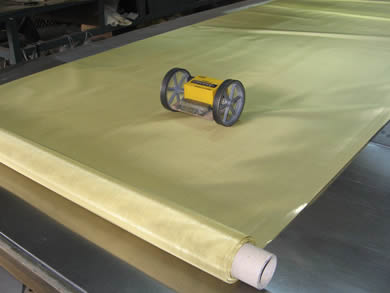

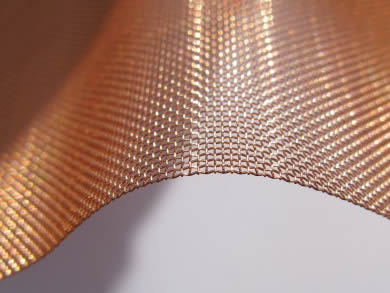

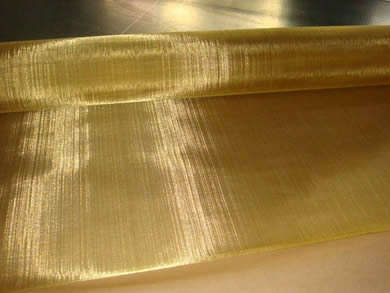

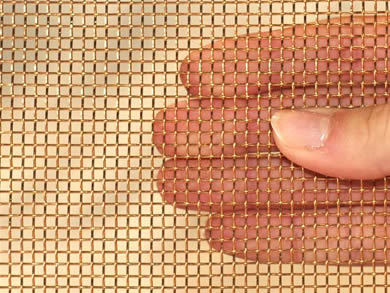

Copper Wire Mesh

The soft and malleable properties of copper metal make it ideal for woven wire mesh and wire cloth.

It is often used in industry for its properties of high electrical conductivity and thermal conductivity as it conducts heat up to eight times better than other commonly used metals.

Other benefits of copper wire mesh are:

  • Versatility
    Copper is ductile, easy to work, join and install. It is easily joined metallurgically by welding, soldering or brazing. Its softness means it can be formed to fit most design configurations.
  • Tensile strength
    Since copper is rigid as well as readily formable, it adds to total system integrity even when subjected to adverse conditions.
  • Low thermal expansion
    This is despite its properties of high conductivity.
  • Does not react with water
    Copper does not react with water, but it slowly reacts with atmospheric oxygen forming a layer of brown-black copper oxide. In contrast to the oxidation of iron by wet air, this oxide layer stops any further, bulk corrosion.
  • Biostatic
    Bacteria will not grow on copper mesh.
  • Long Lasting and Maintenance Free
    Its long-lasting and maintenance-free characteristics make copper the leading choice for many mechanical and industrial systems. It never requires painting for protection from corrosion. In addition, a thin film forms, providing natural protection from corrosion.
  • Fire Safety
    Copper wire mesh will not burn or support combustion. It will not carry fire through floors, walls and ceilings, and it will not decompose into toxic gases.
  • Sustainability
    Copper is 100% recyclable without any loss of quality, whether in a raw state or contained in a manufactured product. In volume, copper is the third most recycled metal after iron and aluminium. It is estimated that 80% of the copper ever mined is still in use today
  • Distinctive colour
    Copper is one of only four elemental metals with a natural colour other than grey or silver which makes it ideal for many decorative applications. The raw metal has a red-orange colour, which changes on exposure to the elements. Exposure creates a distinctive natural green verdigris or patina used to effect by architects and designers. The final patina is a particularly durable layer that is highly resistant to atmospheric corrosion, thereby protecting the underlying metal against further weathering.

Copper Mesh Specification Table

Copper Mesh Specification Table
Mesh Wire Dia. Opening(mm)
SWG mm inch
6 22 0.711 0.028 3.522
8 23 0.61 0.024 2.565
10 25 0.508 0.02 2.032
12 26 0.457 0.018 1.66
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.84
24 30 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.01 0.54
40 36 0.193 0.0076 0.442
50 37 0.173 0.0068 0.335
60 37 0.173 0.0068 0.25
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
90 41 0.112 0.0044 0.17
100 42 0.012 0.004 0.152
120 44 0.081 0.0032 0.131
140 46 0.061 0.0024 0.12
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.009
