Barbed Wire

Products information: Barbed wire twisted and weaved by high quality galvanized wire and PVC wire.

Feature: Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

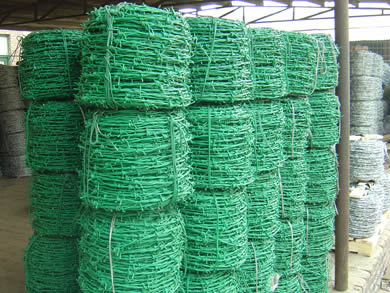

Material: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.

Patterns available: Single Twisted Barbed Wire/ Double Twisted Barbed Wire/ Traditional Twisted Barbed Wire.

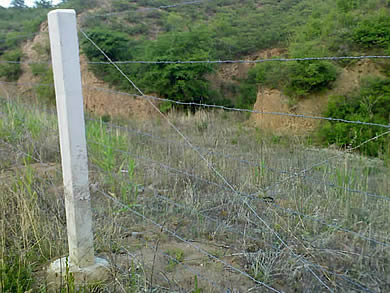

Application: Barbed wire mainly used in protecting of grass boundary, railway, highway, wine, prison, etc.

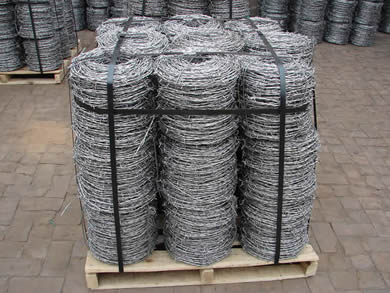

Packing: Plastic inside, hessian outside Plastic inside, waving bag outside

  1. In nude;
  2. In iron axletree;
  3. In wood axletree;
  4. In wood pallet.

Specifications of Barbed Wire
Gauge of
Strand and Barb in B.W.G.		 Approximate Length per kilogram in Meter
Barbs Spacing 3" Barbs Spacing 4" Barbs Spacing 5" Barbs Spacing 6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/2 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386
Barbed Wire Specification
Type Wire Gauge (SWG) Barb Distance (cm) Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire 10# x 12# 7.5-15 1.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire; PE barbed wire before coating after coating 7.5-15 1.5-3
1.0mm-3.5mm 1.4mm-4.0mm
BWG11#-20# BWG8#-17#
SWG11#-20# SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
