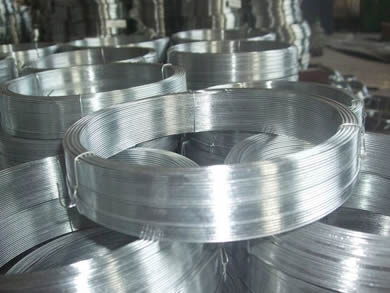

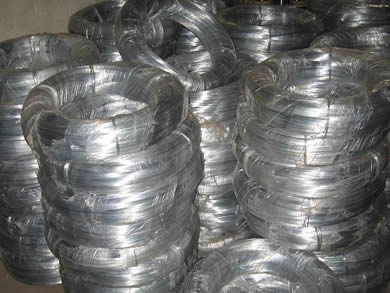

Galvanized Iron Wire

Specification:

Electro Galvanized Wire
Material low carbon steel wire
Wire diameter 0.50mm-6.0mm (BWG25-BWG4)
Zin coat 10-25g/m2
Tensile strength 350-550N/mm2
Elongation rage 10%-25%

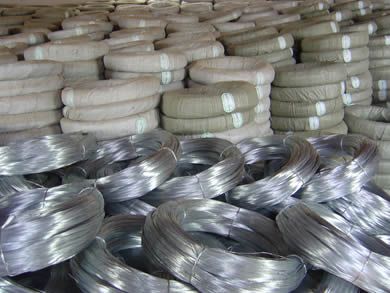

Packing: 0.3 kg/coil - 500 kg/coil plastic inside, hessian cloth or weaving bags outside.

Product Technology: This kind of galvanized wire is made with choice super low carbon steel wire, through standard processes under careful control from steel rod coil, wire drawing, annealing, rust removing, acid washing, boiling, drying, zinc feeding to wire coating .

Characteristics: Thick zinc coating, good corrosion resistance, firm zinc coating.

Usage: It is mainly used in construction, express way fencing, binding of flowers and wire mesh weaving and so on.

Galvanized iron wire
Gauge No. SWG(mm) BWG(mm) Metric(mm)
8 4.05 4.19 4.00
9 3.66 3.76 4.00
10 3.25 3.40 3.50
11 2.95 3.05 3.00
12 2.64 2.77 2.80
13 2.34 2.41 2.50
14 2.03 2.11 2.50
15 1.83 1.83 1.80
16 1.63 1.65 1.65
17 1.42 1.47 1.40
18 1.22 1.25 1.20
19 1.02 1.07 1.00
20 0.91 0.84 0.90
21 0.81 0.81 0.80
22 0.71 0.71 0.70
