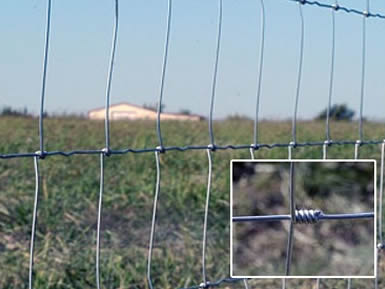

Field Fence

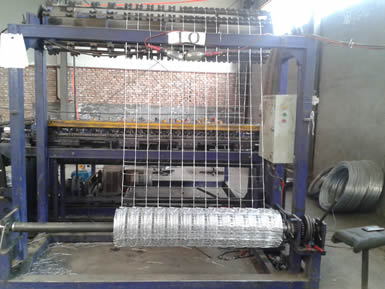

Field Fence adopts high strength galvanized steel wire; using advanced machine equipment, Careful processing, and automation wiring formed part.

Field Fence material: High-strength galvanized iron wire; High-strength zinc plated steel.

Specification:

  • Mesh: (cm) 15-14-13-11-10-8-6(longitude); (cm) 15-18-20-40-50-60-65(woof)
  • Height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m
  • Length: 115feet (50m), 330feet (100m)
  • Set and bottom wire diameter: 2.5mm
  • In wire diameter: 2.0mm
  • Volume diameter: 270mm
  • However, the mesh, height, length, volume diameter can be available according to your request.

Field Fence features: novelty structure, firmly and exactitude, flat mesh surface, equality mesh, good toughness, never hold together, skid proof, strut, anti-rust, hurricane lamp, whatever the weather is, we can ensure the natural life. Usually it can be used for several years. Even if cut into parts, the parts can bear press.

The welded point of Field Fence is firmly, not easy opening, once install, will never hard up. It has excellent corrosion resistance and anti-oxidizing property. It is the best establishment for protecting grass field, forestry center, autobahn and environment.

Sizes Number of Warp Wire Roll Width Warp & Weft Wire Diameter
Edge Warp Wire Middle Weft Wire Warp Wire
91L 5/70/15 5 700mm 2.8mm 2.5mm 2.5mm
91L 8/110/15 8 1100mm 2.8mm 2.5mm 2.5mm
91L 5/70/30 5 700mm 2.8mm 2.5mm 2.5mm
91L 6/70/30 6 700mm 2.8mm 2.5mm 2.5mm
91L 6/90/30 6 900mm 2.8mm 2.5mm 2.5mm
91L 7/90/30 7 900mm 2.8mm 2.5mm 2.5mm
91L 8/110/30 8 1100mm 2.8mm 2.5mm 2.5mm
91L 5/70/60 5 700mm 2.8mm 2.5mm 2.5mm
91L 6/90/60 6 900mm 2.8mm 2.5mm 2.5mm
91L 6/100/60 6 1000mm 2.8mm 2.5mm 2.5mm
91L 7/90/60 7 900mm 2.8mm 2.5mm 2.5mm
91L 7/100/60 7 1000mm 2.8mm 2.5mm 2.5mm
91L 7/110/60 7 1100mm 2.8mm 2.5mm 2.5mm
91L 8/110/60 8 1100mm 2.8mm 2.5mm 2.5mm
