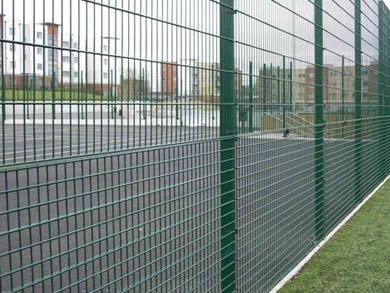

Welded Wire Fence

Introduction and Application:
Welded wire fence is made of low carbon steel wire. Welded wire fence has the features of high strength, beauty, uneasy deforming, quick and easy installation. They are widely used as protective belt in highway, railway and bridges, as security fence in airports, harbor, wharf and living sites. They are also used in city government, parks, lawn, zoos, lakes, roads and industrial sites for protection and isolation. They can also be found in hotels, supermarkets, recreation area for decoration and protection.

Welded Wire Fence Series:

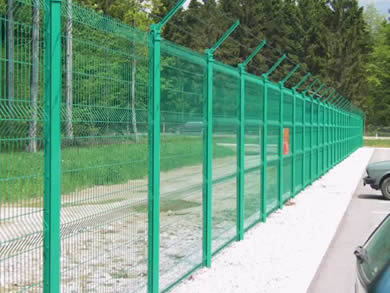

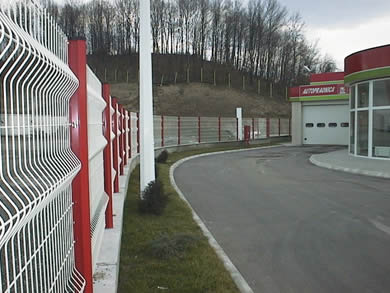

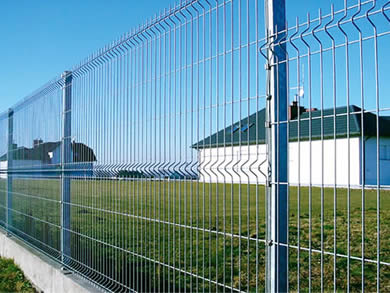

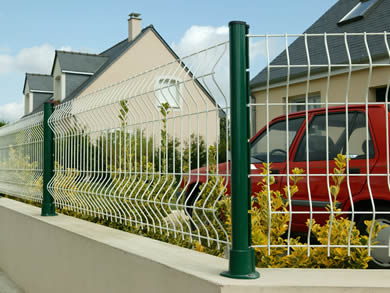

Curvy Welded Fence

Features: Curvy welded fence has simple structure, beautiful appearance and suitable benders. The surface can be treated to dip plastic with different colors, such as yellow, green, red. This type fence mostly uses post with bottoms, thus it just needs to install bolt.

Uses: Road fence railway fence, living site fence, industrial fence, school isolated fence, development zone fence and so on.

Products Specifications:
Wire diameter: 5.0mm
Sizes: 50mm X 180mm
Post size: 48 mm X 2.5mm
Panel size: 2.3m X 2.9m

Anti-corrosion treatment: Galvanized or PVC Coated. Many colors are available.

Post: Peach-type post

Other accessories: Anti-rain cap, bolt, clip.

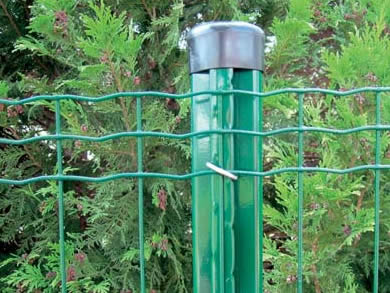

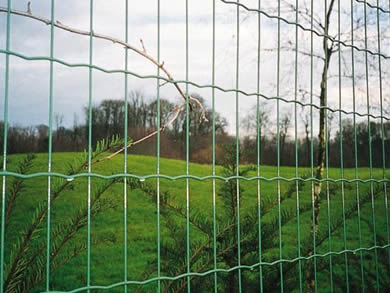

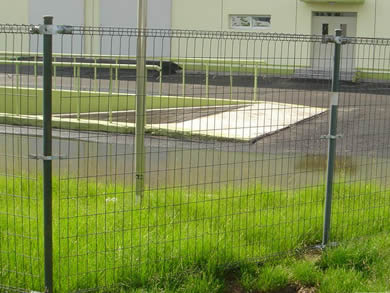

Weave-shape Welded Fence

Features: It is made of with low carbon steel wire after welding. It has the features such as high strength, good steel, beautiful appearance and easy installation.

Uses: They are widely used as fence in green ground, gardens, office fields, roads, airports and harbors.

Products Specifications:
Material: Q235 low carbon cold rolled steel wire.
Plastic coated wire diameter: 4.0-5mm; Galvanized wire diameter: 3.1-5.0mm.
Mesh opening: 75mm X 200mm.
Installation size: 1.8m X 3m.
Post: Φ48X2200mm round post.
Support: per 15 meter one stick.

Anti-corrosion treatment: Galvanized or PVC Coated. Many colors are available.

Other accessories: Anti-rain cap, bolt, clip.

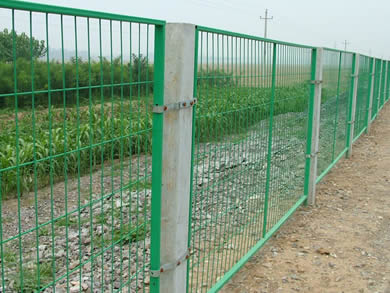

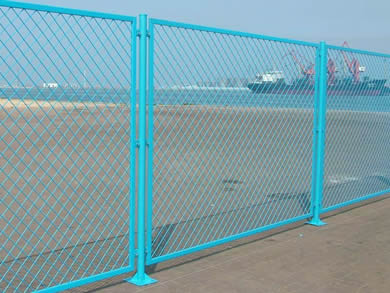

Framework Welded Fence

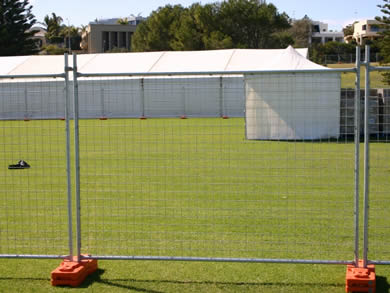

Features: Framework welded fence is one flexible product. And they are widely used in roads, railway, and highway in China, are made into permanent fence wall, and are also used as temporary isolated fence. We can establish all uses with using different fixed post types.

Uses: They are widely used as protective fence in roads, railways, airports, residential sites, harbors, gardens, feeding.

Specifications:
Plastic coated wire diameter: 4.0-5mm; Galvanized wire diameter: 3.1-5.0mm
Mesh opening (mm): 75x150　　
Mesh Panel (mm): 1800x3000
Border width (mm): 30
Border thickness: 1.5-2.5mm

Anti-corrosion treatment: Galvanized or PVC Coated. Many colors are available.

Post: Square post and rectangle post.

Other accessories: Anti-rain caps, clip, bolt.

When you contact us, please provide your detail requirements. That will help us give you a valid quotation.
