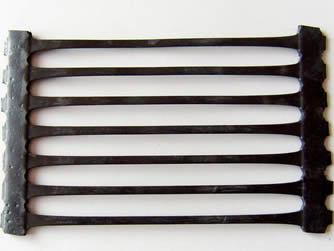

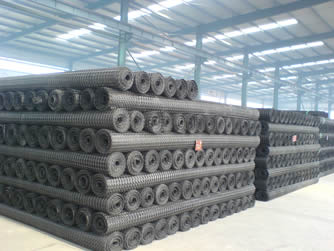

Plastic Geogrid

Plastic geogrid specifications:

  • Material: PP
  • width: 4m
  • Tensile strength:15-45KN/m
  • Weight:300-600g/m2
Plastic geogrids

It is mainly used in highway and railroad to reduce the subsiding difference ofthe roadbed and bridgehead, lower the vibration of the vehicles and theroadbed, slower the roadbed structure distortion to guarantee the security and comfort.

To lay the geogrid in the backfill soil can increase the shearing strength and the whole character in middle terms, reduce the mid-term filling quantity,     make the soft base more convenient, lower the construction cost.

When used in the dam design, it can be as the muscle structure to improve the  bearing distortion performance of the dam to avoid breaking.

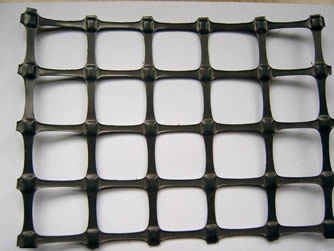

Double-direction geogrid

Double-direction geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforce.

Product Features

  • Increase the bearing capacity of the roadbed and foundation and prolong their service life.
  • Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
  • Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
  • Prevent culverts from flawing.
  • Enhance earth slope and prevent water loss and soil erosion.
  • Decrease underlayer thickness and save manufacturing cost.
  • Enhance the stability of side slope turf net patch to improve greening.
  • Replace wire netting used in mine as intermediate ceiling netting.

Spec Item TGSG15-15 TGSG20-20 TGSG30-30 TGSG40-40 TGSG45-45
Longitudinal Tensile Strength ≥(KN/m) 15 20 30 40 45
Transverse Tensile Strength≥(KN/m) 15 20 30 40 45
Longitudinal Elongation≤(%) 15
Transverse Elongation≤(%) 13
Longitudinal Strength at 2% Strain ≥(KN/m) 5 7 10.5 14 16
Transverse Strength at 2% Strain ≥(KN/m) 5 7 10.5 14 16
Longitudinal Strength at 5% Strain ≥(KN/m) 7 14 21 28 32
Transverse Strength at 5% Strain ≥(KN/m) 7 14 21 28 32
Remark Roll Length: 50m, Roll width: 1~4m
