Fiberglass Mesh

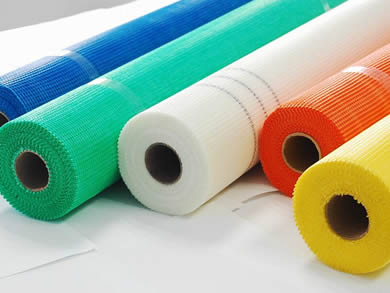

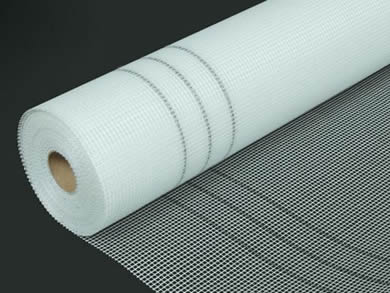

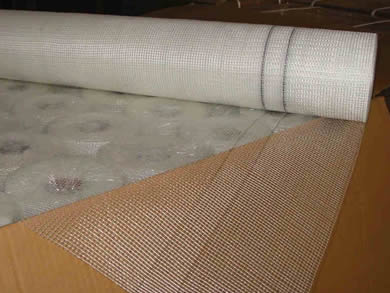

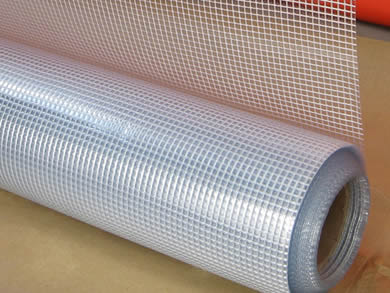

Fiberglass mesh is woven by fiberglass yarn as its basis mesh, and then coated by alkaline resistant latex. It has fine alkaline-resistant, high strength, etc. As an ideal engineering material in construction, it is mainly used to reinforce cement, stone, wall materials, roofing, and gypsum and so on.

We can produce any size mesh according to requirements of customer like different mesh size and weight per square meter.

We can supply special mesh as following:

  1. High strength mesh,
  2. Fire proof mesh.
  3. Strong and flexible mesh

We can supply specifications from 30g/m2 to 500g/m2 for mesh.

Main size: 5mm x 5mm or 4mm x 4mm, 75 g/m2, 90 g/m2, 125 g/m2,145 g/m2, 160 g/m2.

High quality :

  1. Coating glue: our coating glue is produced by Germany BASF which can keep more than 70% after 28 days NaoH test.
  2. Our fiberglass yarn is supplied by Jushi Group which is the largest producer of fiberglass yarn in the world like Saint Gobain, it is more 20% strong strength and beauty surface than normal fiberglass yarn.

large production capacity.

  • We can supply 8 million 10 million square meter one month for fiberglass mesh.
  • We can supply 3 million 5 million square meter one month for self adhesive tape.

Item Number Yarn(Tex) Mesh(mm) Density Count/25mm Tensile Strength × 20cm Woven Structure Content of resin%
Warp Weft Warp Weft Warp Weft Warp Weft
45g2.5x2.5 33×2 33 2.5 2.5 10 10 550 300 Leno 18
60g2.5x2.5 40×2 40 2.5 2.5 10 10 550 650 Leno 18
70g 5x5 45×2 200 5 5 5 5 550 850 Leno 18
80g 5x5 67×2 200 5 5 5 5 700 850 Leno 18
90g 5x5 67×2 250 5 5 5 5 700 1050 Leno 18
110g 5x5 100×2 250 5 5 5 5 800 1050 Leno 18
125g 5x5 134×2 250 5 5 5 5 1200 1300 Leno 18
135g 5x5 134×2 300 5 5 5 5 1300 1400 Leno 18
145g 5x5 134×2 360 5 5 5 5 1200 1300 Leno 18
150g 4x5 134×2 300 4 5 6 5 1300 1300 Leno 18
160g 5x5 134×2 400 5 5 5 5 1450 1600 Leno 18
160g 4x4 134×2 300 4 4 6 6 1550 1650 Leno 18
165g 4x5 134×2 350 4 5 6 5 1300 1300 Leno 18
